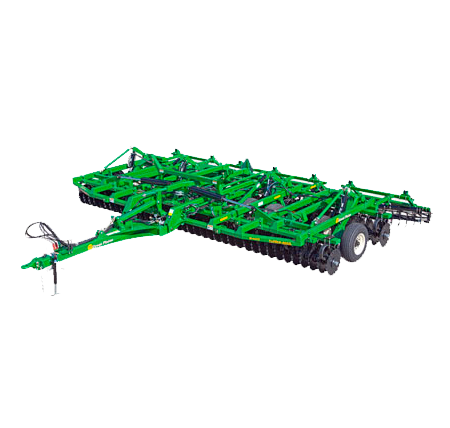

True vertical tillage has become the standard for yield-boosting seedbed preparation. The industry-leading Turbo-Max offers agronomic benefits of both spring vertical tillage and autumn residue management. Turbo-Max blades are spaced 7½” (19cm) apart on two rows of coulter gangs. Rear gangs offset the front gangs, splitting the blade spacing to 3¾” (9.5cm) for superior residue sizing in one pass. Gang angle is hydraulically adjustable on-the-go from 0° to 6°, offering greater flexibility to match changing field conditions.
In autumn, run the machine with gangs at an angle to cover more residue. This will accelerate the decaying process and prevent residue from blowing away. In the spring, keep the gangs straight to create a uniform, vertically-tilled seedbed perfect for planting.
For larger operations, the 4800TM Turbo-Max model works with today’s high-horsepower tractors to meet growing labor and productivity demands. With a 48′ (14.6m) working width, this wider machine will effectively manage residue at a faster pace, addressing rural conservation and water quality issues through a large-scale reduced tillage system.
With available working widths ranging from 8½’ to 48′, Turbo-Max delivers true vertical tillage to producers of all sizes. For lower horsepower tractors, the compact 8½’ (2.6m) 850TM is ideal for manure incorporation, residue management, seedbed preparation, and aeration for grass renovation after hard grazing seasons. Running Turbo-Max can also improve water quality and contribute to conservation efforts on HEL grounds.
Turbo-Seeder™ cover crop attachment available for 1200TM, 1500TM, 3000TM, 3500TM, and 4000TM Turbo-Max models.
HYDRAULICALLY-ADJUSTABLE GANG ANGLE FROM 0-6º ON-THE-GO
Sizes and covers residue in the fall at 3° to 6° and prepares the ultimate spring seedbed at 0°.
HYDRAULIC WEIGHT TRANSFER IS STANDARD (MODELS 18′ AND LARGER)
Creates an even and constant downforce across the entire width of the implement, assuring uniform penetration and eliminating the possibility for wings to float.
TRUE VERTICAL TILLAGE MACHINE
With 20″ (51cm) Turbo Coulters spaced 7½” (19cm) apart, Turbo-Max provides truly vertical cutting without the shearing caused by concave blades. Offset front and rear gangs achieve an effective residue cutting width of 3¾” (9.5cm) when running at 0°, which is recommended for seedbed preparation.
ROLLING SPIKE AND REEL REAR ATTACHMENT
Rolling spike harrow tines split Turbo Coulters to ensure thorough mixing of soil and residue and provide a smooth, uniform seedbed for optimum planter performance. The rear reel leaves the surface planter-ready by firming soil, removing air pockets, and eliminating clods.
The standard hydraulic reel allows you to conveniently adjust down pressure or lift out of the ground with in-cab hydraulic operation. An easy-to-read pressure gauge allows for easy down-pressure monitoring from the tractor seat. This design maintains travel regardless of the selected down-pressure. A hydraulic cylinder is used to pre-load down-pressure springs. When field conditions are not ideal, the harrow can be raised.
EXCLUSIVE MAINTENANCE-FREE BEARINGS
Reduce maintenance time and extend life of bearings. These 360° self-aligning bearings are never side-loaded. A six-lip seal on each side locks in grease and prevents contamination. Additionally, the walking beam pivots utilize Teflon™-coated bushings, eliminating the need for tapered bearings and grease in pivot points.
